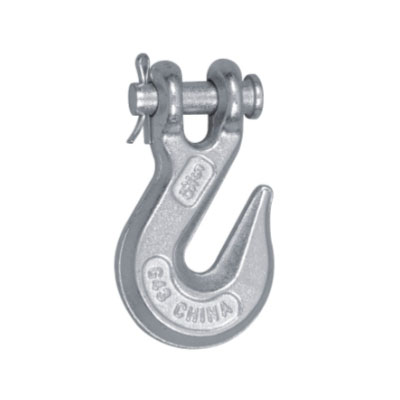

Forged Clevis Grab HookUS Type
Bahan: 45 # （G43ï¼ ‰ ，40CR（G70ï¼ ‰
Beban pamungkas = WLL * 3（G43ï¼ ‰, WLL * 4（G70ï¼ ‰
Perlakuan permukaan: warna séng warna lipit, beuleum panas
Forged Clevis Grab HookBubuka
Jenis AS
Bahan: 45 # （G43ï¼ ‰ ，40CR（G70ï¼ ‰
Beban pamungkas = WLL * 3（G43ï¼ ‰, WLL * 4（G70ï¼ ‰
Perlakuan permukaan: warna séng warna lipit, beuleum panas
Forged Clevis Grab Hook Spésifikasi
| Barang No. | Ukuran Ranté (di) | Beban damel (LBS) | Dimension（inï¼ ‰ | Beurat (KGS) | ||||
| H-300 | A-300 | B | E | P | R | |||
| 90010000 | 1/4 | 2600 | 3600 | 0.36 | 0.4 | 0.38 | 1.97 | 0.18 |
| 90010001 | 5/16 | 3900 | 5400 | 0.4 | 0.44 | 0.44 | 2.26 | 0.3 |
| 90010002 | 3/8 | 5400 | 7500 | 0.48 | 0.5 | 0.47 | 2.63 | 0.51 |
| 90010003 | 1/2 | 9200 | 12750 | 0.75 | 0.66 | 0.63 | 3.19 | 1.5 |
