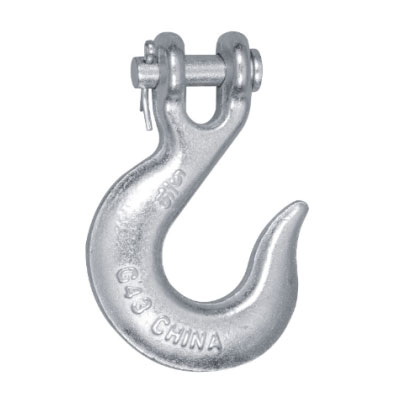

Forged Clevis Slip HookUS Type
Bahan: 45 # （G43ï¼ ‰ ，40CR（G70ï¼ ‰
Beban pamungkas = WLL * 3（G43ï¼ ‰, WLL * 4（G70ï¼ ‰
Perlakuan permukaan: warna séng warna lipit, beuleum panas
Forged Clevis Slip HookBubuka
Jenis AS
Bahan: 45 # （G43ï¼ ‰ ，40CR（G70ï¼ ‰
Beban pamungkas = WLL * 3（G43ï¼ ‰, WLL * 4（G70ï¼ ‰
Perlakuan permukaan: warna séng warna lipit, beuleum panas
Forged Clevis Slip Hook Spésifikasi
| Barang No. | Ukuran Ranté (di) | Beban damel (LBS) | Dimension（inï¼ ‰ | Beurat (KGS) | ||||
| H-331 | A-331 | B | E | P | R | |||
| 90010000 | 1/4 | 1950 | 2750 | 0.44 | 0.94 | 0.38 | 2.56 | 0.27 |
| 90010001 | 5/16 | 2875 | 4300 | 0.5 | 1.66 | 0.44 | 2.87 | 0.38 |
| 90010002 | 3/8 | 4000 | 5250 | 0.59 | 1.31 | 0.47 | 3.25 | 0.63 |
| 90010003 | 1/2 | 6500 | 9000 | 0.75 | 1.69 | 0.63 | 4 | 1.32 |
